Thermal Imaging: Finding Hidden Water Damage Without Demolition

One of the greatest challenges in water damage restoration is finding moisture you cannot see. Water travels along unexpected paths — through wall cavities, along pipe chases, under flooring, and between ceiling joists — often ending up far from the original leak. At WrightWay Emergency Services, we use FLIR thermal imaging cameras on every water damage inspection to locate hidden moisture accurately and non-invasively across SW Florida homes and businesses. This technology has fundamentally changed how restoration professionals scope water damage, and it directly benefits homeowners by ensuring all affected areas are identified before repairs begin.

How Thermal Imaging Works

Thermal imaging cameras, also called infrared (IR) cameras, detect temperature differences on surfaces. They do not directly detect moisture — instead, they detect the temperature anomalies that moisture creates. Here is why this works:

• Evaporative cooling: When moisture evaporates from a surface, it absorbs heat energy, making the wet area cooler than surrounding dry areas. The thermal camera displays this temperature difference as a distinct color pattern — typically blue or purple for cooler (wet) areas against warmer (dry) surroundings.
• Thermal mass: Water retains heat differently than dry building materials. Wet areas warm up and cool down more slowly, creating temperature contrasts that are visible on an IR image.
• Conduction patterns: Water conducts heat more efficiently than air-filled insulation, so wet wall cavities show different thermal signatures than dry ones.

The temperature difference between a wet surface and a dry surface can be as little as 2 to 5 degrees Fahrenheit, but professional-grade thermal cameras used in restoration — such as FLIR E-series and T-series models — can detect temperature differentials as small as 0.1 degrees, making them extraordinarily sensitive to moisture patterns.

What Thermal Imaging Can Detect

A skilled technician with a thermal camera can identify moisture problems that would otherwise require invasive testing or demolition:

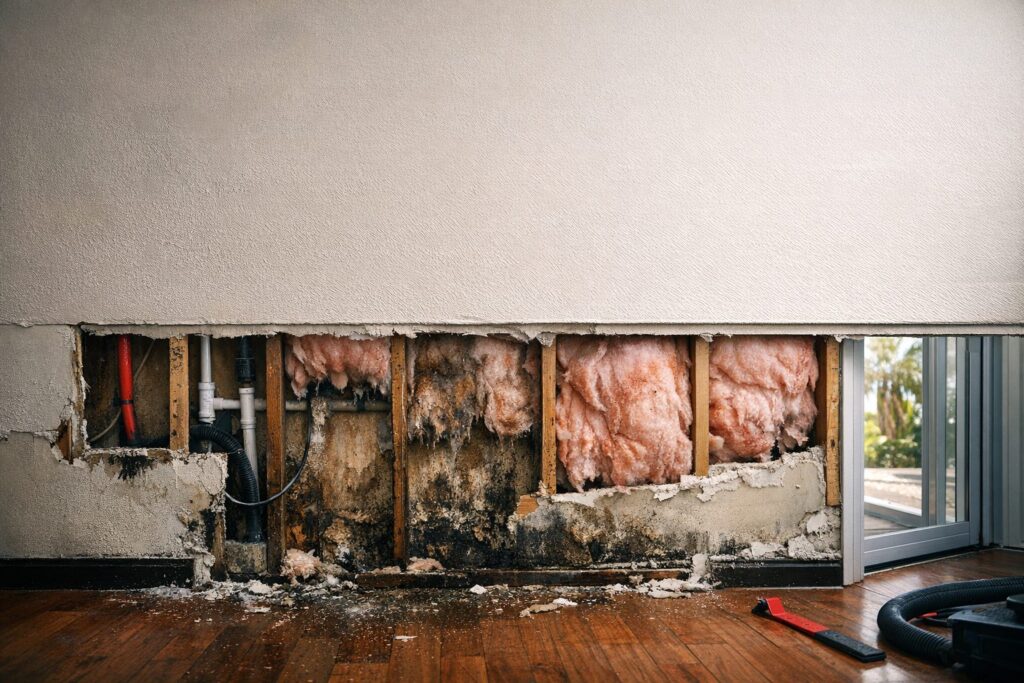

1. Water behind walls: Plumbing leaks, condensation from HVAC systems, and exterior water intrusion create distinct cool spots on interior wall surfaces. In our experience, this is the most common finding during SW Florida moisture inspections.
2. Wet insulation: Saturated insulation in walls, ceilings, and attics shows dramatically different thermal signatures than dry insulation. In SW Florida attics — which can reach 140 degrees or higher in summer — wet insulation stands out clearly against the superheated dry insulation around it.
3. Moisture under flooring: Water trapped beneath tile, hardwood, or laminate flooring is visible as temperature anomalies when scanned from above. This is particularly valuable in SW Florida homes with tile-over-slab construction, where moisture can be trapped beneath the tile for weeks without any visible sign.
4. Roof leaks: Moisture intrusion through the roof creates thermal patterns on ceiling surfaces long before visible water stains appear
5. HVAC condensation: Condensation from ductwork, particularly in unconditioned spaces like attics, is a common source of hidden damage in Florida. Our technicians frequently discover condensation problems in attic flex duct that has lost its insulation wrap or developed tears at connection points.

Limitations of Thermal Imaging

While thermal imaging is an invaluable tool, it has limitations that a qualified technician must understand. This is why interpretation matters as much as the equipment itself:

• Thermal cameras detect temperature differences, not moisture directly — findings must always be confirmed with a pin-type or pinless moisture meter before any remediation decisions are made
• Reflective surfaces like metal, glass, and some glazed tile can produce misleading readings due to reflected thermal energy
• HVAC registers, sun exposure, and other heat sources can create thermal patterns that mimic moisture signatures
• Very small amounts of moisture may not produce detectable temperature differences
• Environmental conditions (outdoor temperature, solar loading, time of day) affect the accuracy and timing of scans — morning scans before the Florida sun heats exterior walls typically produce the most reliable results for detecting exterior water intrusion

Why Technician Training Matters

A thermal imaging camera is only as good as the technician interpreting the images. An untrained operator can easily misidentify normal thermal patterns as moisture or — worse — miss actual moisture hiding in plain sight. Our technicians hold IICRC Water Restoration Technician (WRT) certifications and are trained in thermographic interpretation specific to building moisture investigations. They understand how to differentiate between evaporative cooling patterns caused by moisture, thermal bridging from structural framing, and reflective anomalies from surface materials.

Thermal Imaging in the Restoration Process

At WrightWay, we use thermal imaging at multiple stages of the restoration process:

1. Initial assessment: Identifying the full extent of water migration to ensure all affected areas are included in the scope of work. This prevents the costly surprise of discovering additional damage during reconstruction.
2. During drying: Verifying that drying equipment is effectively reaching all wet areas and identifying pockets that may need additional attention or equipment repositioning
3. Final verification: Confirming that all previously wet areas have been dried to acceptable IICRC standards before repairs begin — providing both visual and measured proof that the structure is dry
4. Insurance documentation: Providing visual evidence of hidden moisture for insurance adjusters who may not see visible damage. Thermal images clearly show moisture extent behind walls, under floors, and above ceilings, supporting accurate scope documentation in Xactimate estimates.
